1, Application
Thick jam filling machine is widely used in sauces, foods, daily chemicals, etc, can fill hot sauce, tomato sauce, honey, jam, mushroom sauce, mustard sauce, salad dressing, pulp-containing beverages, etc. Using servo control, high measurement accuracy and stable operation.
2, Main Technical Parameter
| Model | Filler volume | Air consumption | Filling accuracy | Total power | Machine size(mm) |
| LW-FPP-4A | 10-60g | 120L/Min | liqud≤±0.5%Paste≤±1% | 3P 380V,50/60Hz 1.369KW | L2200*W1020*H2250 |
| LW-FPP-6A | 30-100g50-250g | 140L/Min | liqud≤±0.5%Paste≤±1% | 3P 380V,50/60Hz1.69KW | L2500×W1020×H2250 |
| LW-FPP-8A | 100-500g | 160L/Min | liquid≤±0.5%Paste≤±1% | 3P 380V,50/60Hz 2.07KW | L2500×W1020× H2250 |
| LW-FPP-10A | 200-1000g500-2500ml | 180L/Min | liquid≤±0.5%Paste≤±1% | 3P 380V,50/60Hz 2.82kw | L3000×W1020×H2250 |
| LW-FPP-12A | 1000-5000ml | 300L/Min | liquid≤±0.5%Paste≤±1% | 3 P 380V,50/60Hz 2.82kw | L3000×W1020×H2250 |
3, Features
1, Preventing Leaking System
2, No Bottle or Lack of Bottle, No Filling System
3, Photoelectric Sensor, Mechatronics Filling Adjustment System
4, Photoelectric Sensor, Material Level Control Feeding System
5, Stainless Steel Frame, Plexiglass as Security Cover
6, Control System: PLC/Electronic-Pneumatic Controlled

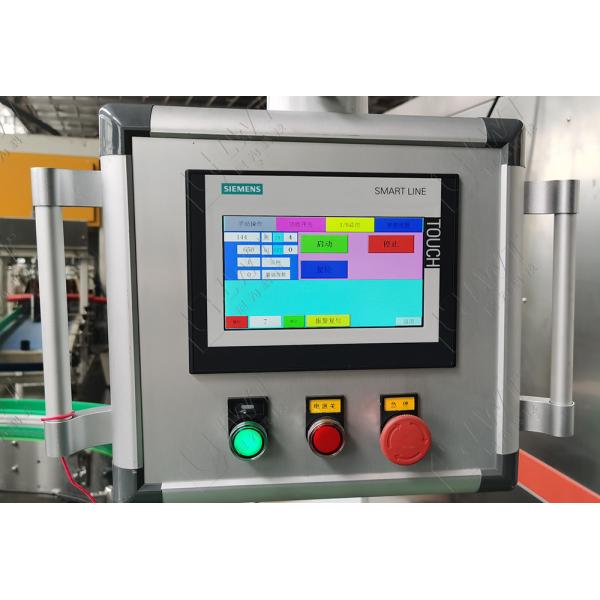

7, Operation Panel: "Intelligent" Colorful Touch Screen
8,Filling Accuracy:+-0.5%—1%
9, Capacity Adjustment: All cylinders adjusted automatically combine single cylinder adjusted individually.
10, Container transport: Stainless steel frame and engineering plastic plate chain variable speed conveyor, with photoelectric sensor.
4, Application
